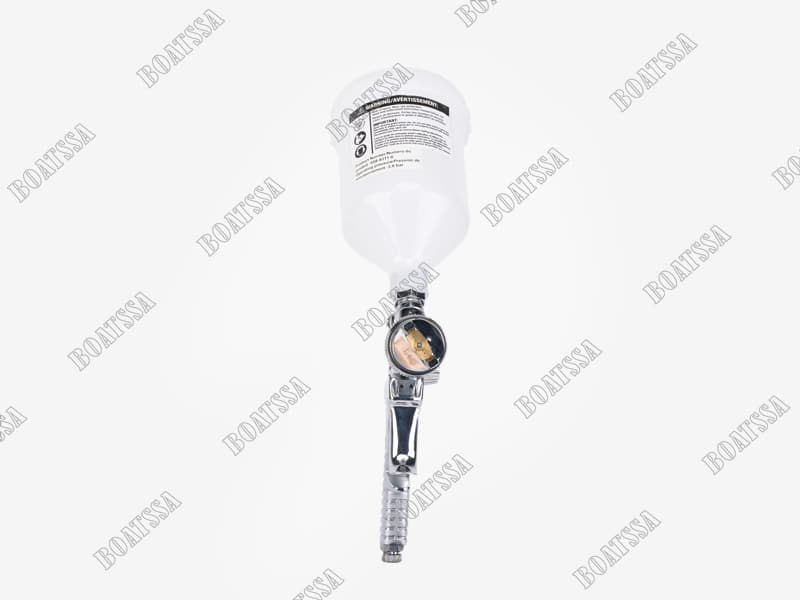

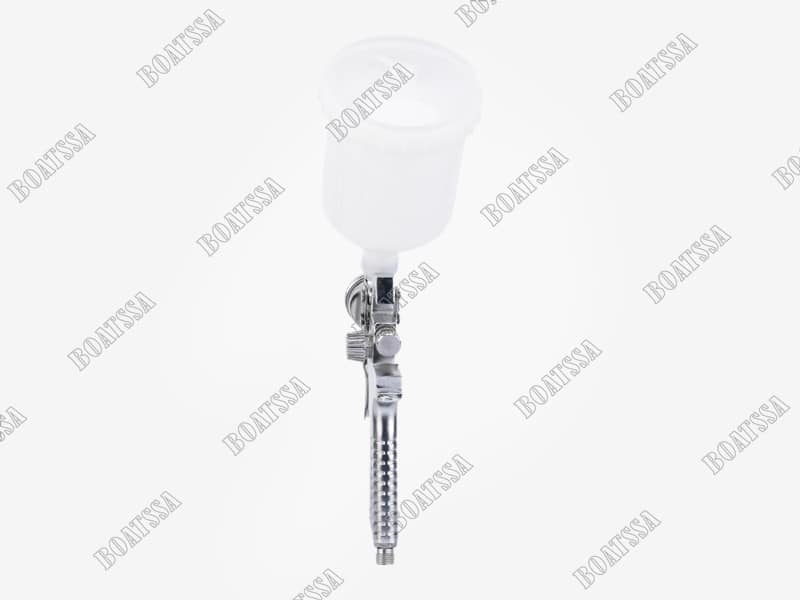

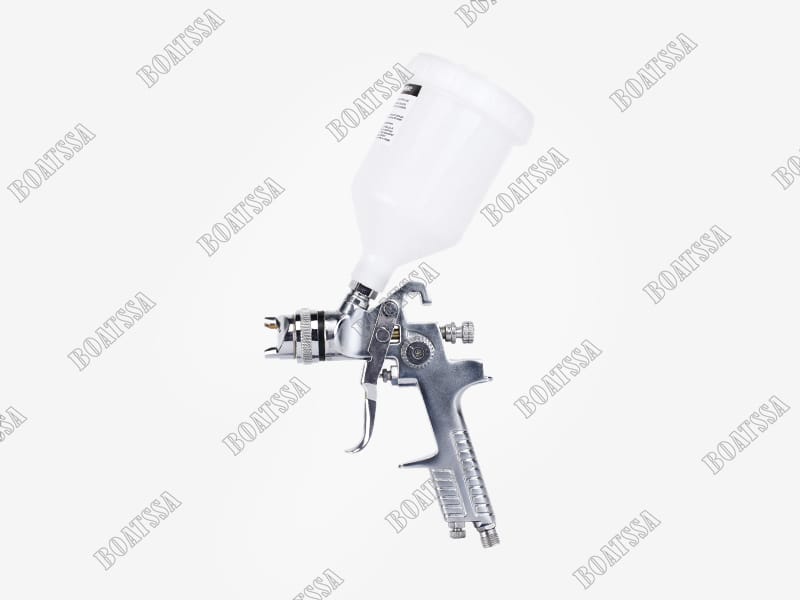

GRAVITY FEED SPRAY GUN WITH REGULATOR
R575
An HVLP spray gun that offers excellent spray finish with minimal overspray. Easy to learn and maintain as well. Is a more economic spray painting solution. *N*
- Description
- SPECIFICATIONS
- in the box
- Shipping
- Product QR Code
Description
Description
Main Features:
– HVLP (high volume low pressure) spray gun supply 10psi Low pressure through the air cap which make the spraying softer, easily controlled and less overspray in high transfer efficiency.
– Includes adjustable fluid, pattern and air controls.
– Designed to provide equal atomization and particle size for all kinds of surface painting.
Light weight, ergonomic design and easy trigger pivot reduce operating fatigue.
Features/ Benefits:

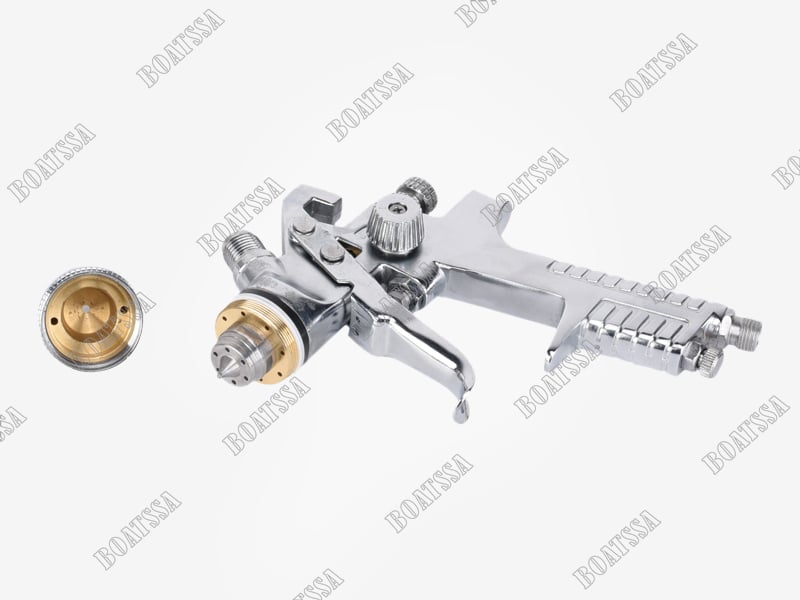

– Aluminum die-cast gun body
– Copper air cap
– Stainless steel nozzle & needle
– Hanger design, easy hanging for storage
– Versatile for water-based paints of neutral viscosity
– Wide usage range, sprays at 10-12 m/min for uniform, high-efficiency coverage
– Delivers over 65% paint transfer efficiency
SPECIFICATIONS
Type of Feed: Gravity
Standard Nozzle: φ1.4mm
Optional Nozzle: φ1.4
Operating Pressure: 2.0-3.5bar
Pattern Width: 180-250mm
Air Consumption: 4.2-7.1cfm
Paint Capacity: 600cc
in the box
HVLP Spray Gun x 1
Gravity Plastic Cup (600CC) x 1

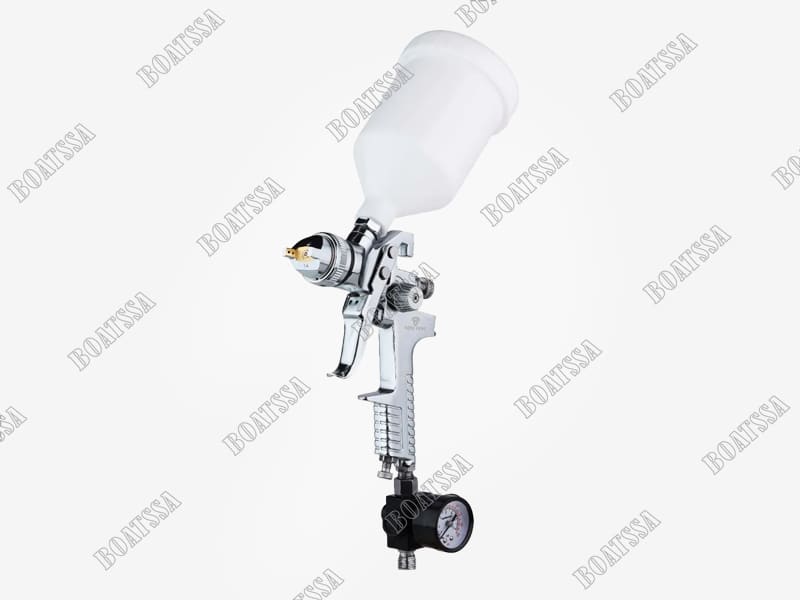

Regulator with Gauge x 1
Spare Filter x 1
Spanner x 1
Socket Spanner x 1
Brush x 1
Shipping
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 25 × 19 × 16 cm |
